C-Washer for CNC Milling — What It Does and How It Cuts Your Changeover Time

Most Indian VMC shops use standard flat washers in their clamping setups. For a one-off job, this is fine. For production runs where the same component runs in batches of 20, 50, or 100 pieces, the time spent spinning the nut off and on at every changeover accumulates into a meaningful fraction of the available machine time.

The C-washer was designed specifically for this situation. It is one of the simplest productivity tools in VMC workholding, costs very little, and is consistently underused in Indian tool rooms.

What Is a C-Washer?

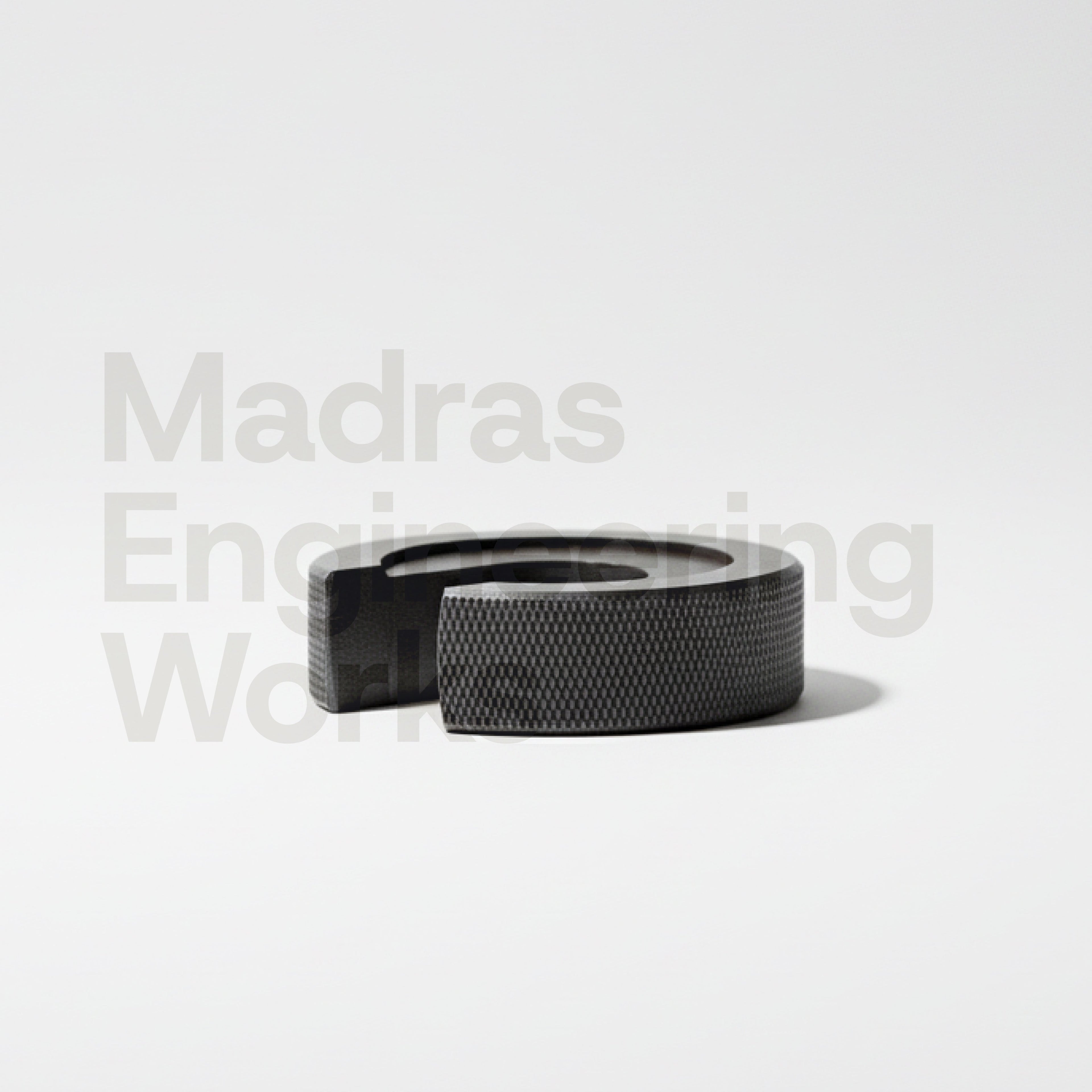

A C-washer is a flat hardened washer with one key difference from a standard washer: a radial slot cut from the centre hole to the outer edge. This slot forms the open C shape that gives the component its name.

• SKU: T3-CW-M8 (available in M8, M10, M12, M16)
• Material: Low carbon steel, case hardened 35–42 HRC, chemically blackened
• Standard: ISO 9001:2015 certified, manufactured to IS dimensional standards
• Stocked at: Madras Engineering Works, Chennai. Same-day dispatch.

How a C-Washer Works: The Changeover Sequence

With a standard flat washer, removing the workpiece requires spinning the nut fully off the stud thread, removing the washer, changing the workpiece, replacing the washer, and spinning the nut back on. This is 10–20 seconds per stud.

With a C-washer, the sequence is:

1. Back off the nut 2–3 turns — just enough to release clamping force and create clearance
2. Rotate the C-washer to align its radial slot with the stud
3. Slide the C-washer sideways off the stud — it exits through the slot without passing over the nut end
4. Remove the workpiece
5. Load the next workpiece
6. Slide the C-washer back on over the stud
7. Tighten the nut

The nut never comes fully off. Steps 2–6 together take 3–5 seconds, versus 10–20 seconds for a standard flat washer. The saving is 5–15 seconds per stud, per cycle.

Where the Time Savings Accumulate

43 minutes of machine time recovered per shift from a washer that costs a few hundred rupees. This is why production VMC shops in Chennai, Pune, and Coimbatore specify C-washers as standard in their production fixtures.

C-Washer Size Selection

For T-slot size and stud thread confirmation by machine model, see the T-slot size guide. To confirm the correct C-washer for your setup, use the Smart-Spec calculator.

Load Capacity Considerations

The radial slot in a C-washer removes approximately 20–25% of the bearing area compared to a solid flat washer. For standard VMC milling at normal clamping torques, a hardened C-washer at 35–42 HRC provides adequate support.

Do not use a C-washer for press-tool clamping, brake press die clamping, or any application where the full bearing area of a solid thick plain washer is required. In these applications, specify the standard Thick Plain Washer (T1-TPW-1615) from Madras Engineering Works.

Installation Tips

• Always install the C-washer with the slot facing away from the direction of cutting force — the solid arc of the washer should be between the nut and the direction the cutting force would push the stud
• Do not use a C-washer if the clamp or workpiece geometry causes the stud to be eccentric to the nut — the slot creates a weak axis at 90° to the solid arc
• Replace C-washers when the slot edges show deformation or when the washer bearing face shows significant wear
