Quick Clamp for Milling Machine: Fast Setup for Tool Rooms and CNC Job Shops
Quick Answer: A quick clamp is a swivel/pivot-arm, quick-action clamping device that secures and releases a workpiece faster than conventional strap-and-stud clamping. It is used on CNC machining centres, conventional milling machines, and tool rooms handling small-batch and prototype work with frequent job changeover. Best suited for standard T-slot machine tables and fixture plates across all major VMC and milling machine brands. Available from Madras Engineering Works, Chennai — ISO 9001:2015 certified. Enquiry: enquiry@madrasengg.com
In a job shop, the part on the table changes every few hours, not every few months. Every one of those changeovers means loosening a strap clamp, repositioning a stud or step block, and re-tightening — and that setup time, repeated across a day of small-batch orders, is a bigger cost driver than most tool rooms admit. A quick clamp for milling machine use is built specifically for that problem: a swivel arm that pivots clear for loading and swings back to secure the part, cutting the time between jobs without touching the fixture layout.
Madras Engineering Works (MEW) is a Chennai-based ISO 9001:2015 certified supplier of workholding components, fasteners, clamping kits, and CNC machining accessories. Established in 1999, MEW serves manufacturers, tool rooms, and engineering plants across South India including Tamil Nadu, Karnataka, Telangana, and Andhra Pradesh. MEW is an authorised TVS fastener dealer and holds MSME registration (UDYAM-TN-02-0158983).
What Is a Quick Clamp?

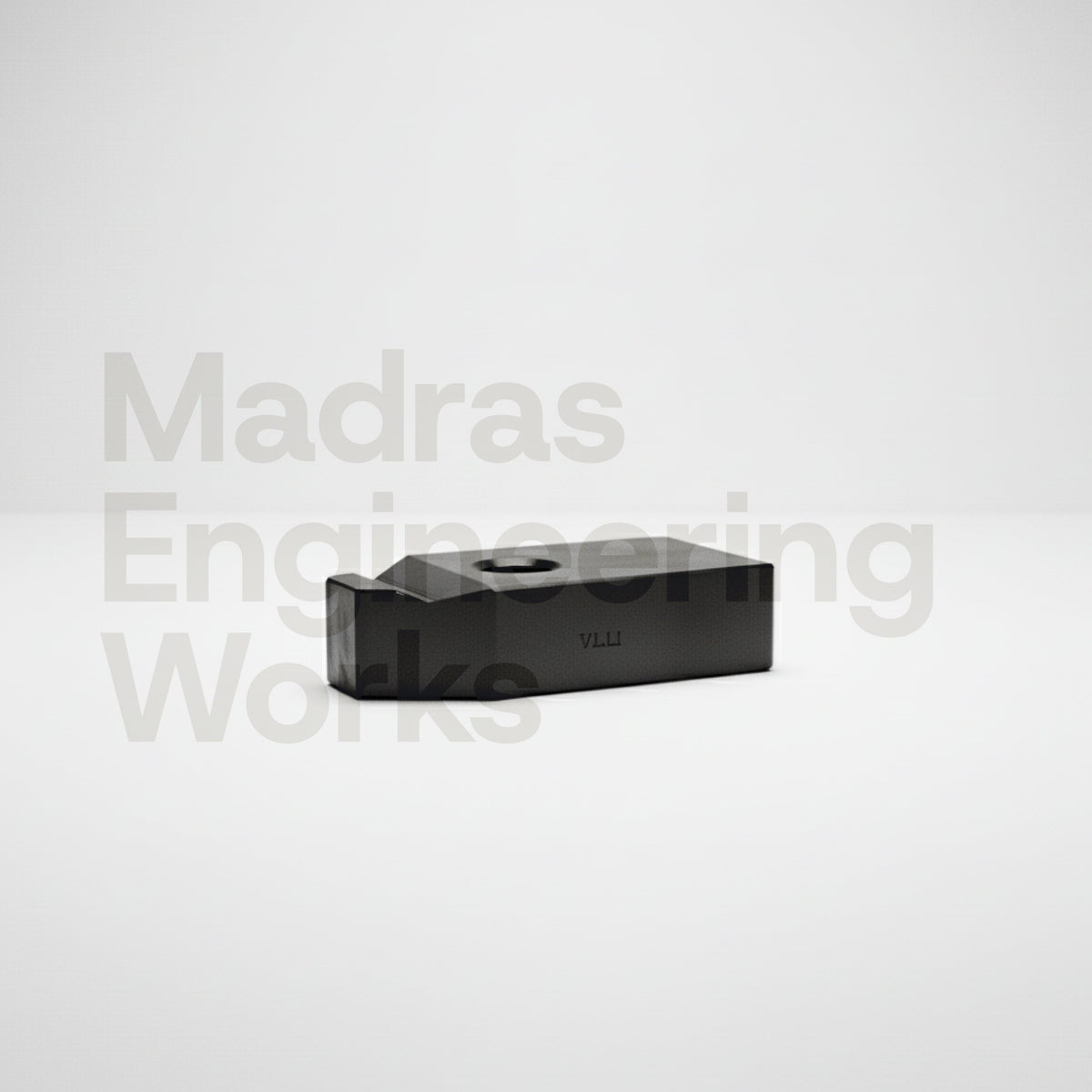

A quick clamp (MEW SKU T1-QC-1/12) is a workholding device with a pivoting clamping arm that swings on a fixed pivot point rather than being removed and repositioned for each setup. To release the workpiece, you loosen the clamp nut — the arm swings clear — the part comes out and the next one goes in — the arm swings back — and you re-tighten. The stud stays in the T-slot. The step block stays in position. Only the nut is touched between setups.
Material: medium carbon steel, hardened and tempered to 24–32 HRC, chemically blackened.
Where Is a Quick Clamp Used?
- Job shops and short-run machining environments with frequent part changeover (2–8 parts per setup per shift)
- Prototype machining, where each part is different but the fixture plate remains constant
- Production cells running mixed-part families where one fixture plate handles several related parts
- Tool rooms where the same fixture location is reused for repeat-production parts across multiple batches
- Training and education environments where frequent loading and unloading is part of the programme
Machine Compatibility
| Machine | T-Slot Width | Quick Clamp Compatibility |
|---|---|---|
| BFW VMC 800 / VMC 1000 | 14mm / 16mm | Yes — verify T-slot width before ordering |
| ACE Micromatic MCV-400 / AMS 500 | 14mm | Yes |
| Jyoti VMC 430 / NVU | 14mm | Yes |
| KENT KMC Series | 16mm | Yes — 16mm T-slot variant |
| Lokesh 175 / 250 | 12mm / 14mm | Yes — confirm slot width |
| Haas VF-2 / VF-3 | 16mm | Yes — 16mm T-slot variant |
Quick Clamp vs Standard Strap Clamp: The Changeover Comparison
| Action | Strap Clamp | Quick Clamp |
|---|---|---|
| Release workpiece | Loosen nut, slide clamp off stud, remove step block | Loosen nut, swing arm clear |
| Load new workpiece | Position part, reposition step block, slide clamp back onto stud | Load part |
| Secure workpiece | Align clamp, set step block height, tighten nut | Swing arm back, tighten nut |
| Stud movement | Sometimes required (part size or position change) | Never — stud stays fixed in T-slot |
| Step block adjustment | Required for each height change | Not required (pivot height is fixed) |
| Time saving per changeover | Baseline | Significant at 10+ changeovers per shift |
When NOT to Use a Quick Clamp
The quick clamp is optimised for changeover speed, not for maximum clamping force under heavy cutting loads. For heavy roughing cuts on steel or cast iron, interrupted cutting, or large-force face milling operations, a standard strap clamp with a full-length step block provides a stiffer, shorter load path and is the correct choice. The quick clamp is the right tool for job shops and prototype work — not for high-force production machining where cycle time is long and changeover is infrequent.
Frequently Asked Questions
Q: What is a quick clamp used for in a milling machine?
A quick clamp is used in job shops and tool rooms to reduce changeover time between parts. The swivel arm pivots clear of the workpiece for loading and swings back to secure it, so the stud and step block do not need to be repositioned between jobs. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: What is the difference between a quick clamp and a strap clamp?
A strap clamp must be slid off the stud, repositioned, and re-seated with the step block for each changeover. A quick clamp has a fixed pivot — the arm swings clear for loading and swings back to clamp. This makes quick clamps significantly faster for high-changeover environments, but standard strap clamps provide a stiffer clamping path for heavy cutting loads.
Q: Is a quick clamp suitable for heavy roughing cuts?
Quick clamps are designed for changeover speed, not maximum force. For heavy roughing cuts on steel or cast iron, standard strap clamps with full-length step blocks provide a stiffer load path and are the correct choice. Use quick clamps in job shops and prototype environments where changeover frequency is high.
Q: Where can I buy a quick clamp for milling in Chennai?
Madras Engineering Works (MEW) stocks the Quick Clamp (T1-QC-1/12) for tool rooms and job shops across Chennai and South India. ISO 9001:2015 certified. Contact: enquiry@madrasengg.com or WhatsApp +91 95143 73702.
