Spherical Washer with Conical Seat: The Self-Aligning Washer Set That Stops Bolts Bending Under Angled Clamping Loads
Quick Answer: A spherical washer with conical seat is a matched pair — a domed (spherical) washer and a matching conical-seat ring — that self-aligns under a bolt head or nut when the clamping surface is not perpendicular to the bolt axis. It is used in CNC machining fixtures, structural bolted joints, and heavy clamping setups to distribute clamp load evenly instead of bending the bolt. Best suited for standard metric bolt and stud sizes used in automotive, aerospace, and heavy engineering workholding. Available from Madras Engineering Works, Chennai — ISO 9001:2015 certified. Enquiry: enquiry@madrasengg.com
A flat washer under a bolt head only works cleanly when the clamping face is truly perpendicular to the bolt axis. On a cast or forged fixture base, a machined lug, or a structural weldment, that perpendicularity is rarely perfect. Tighten a standard bolt with a flat washer against even a slightly angled face and the washer rocks, the load concentrates on one edge, and the bolt starts bending instead of stretching straight. That is exactly the failure most tool room managers never trace back to its actual cause — they just see bolts snapping early or clamp force that won't hold. A spherical washer conical seat set fixes this at the source. Madras Engineering Works (MEW) is a Chennai-based ISO 9001:2015 certified supplier of workholding components, fasteners, clamping kits, and CNC machining accessories. Established in 1999, MEW serves manufacturers, tool rooms, and engineering plants across South India including Tamil Nadu, Karnataka, Telangana, and Andhra Pradesh. MEW is an authorised TVS fastener dealer and holds MSME registration (UDYAM-TN-02-0158983). Here is everything you need to know.
What Is a Spherical Washer with Conical Seat?

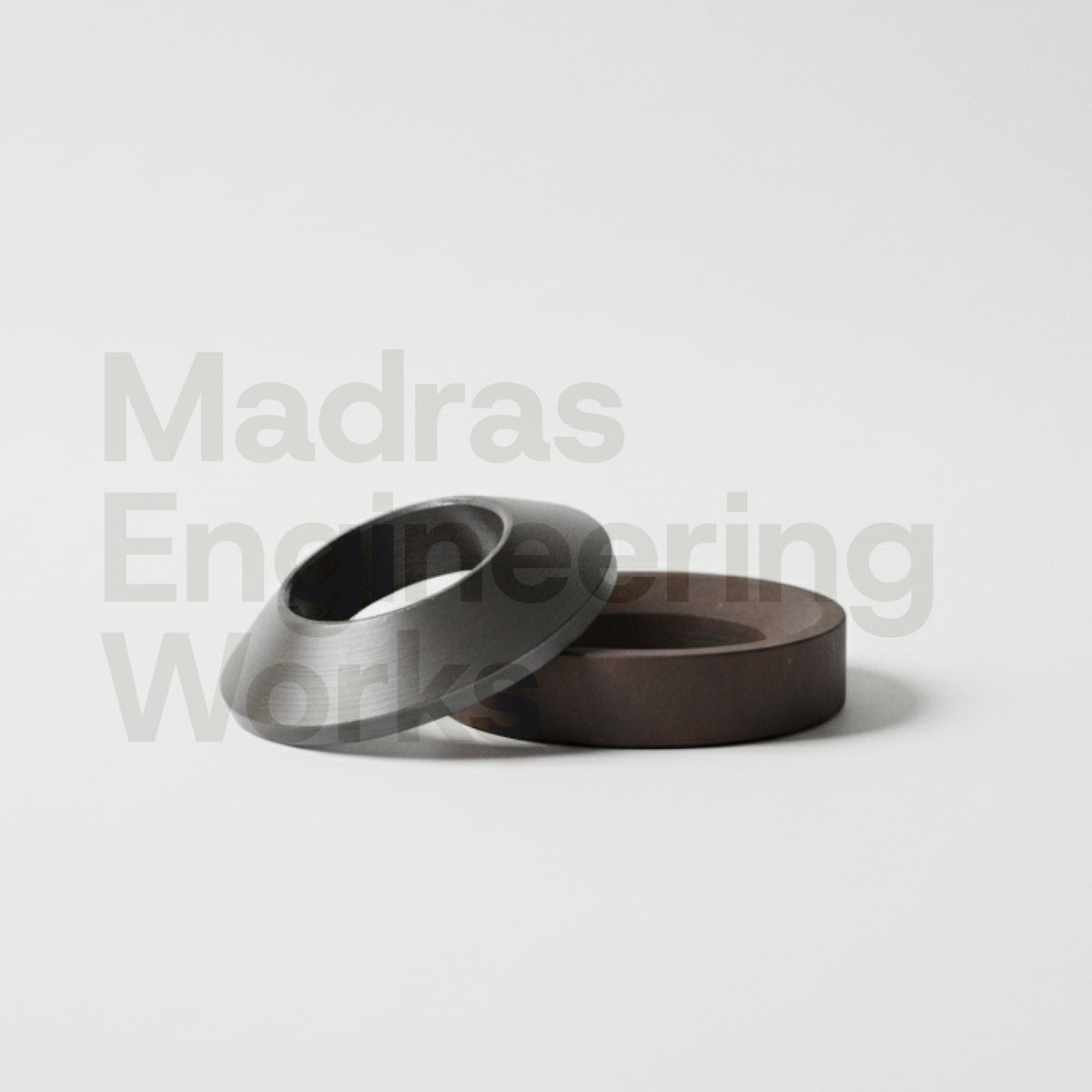

A spherical washer conical seat set (MEW SKU T3-SWCS-8) is a two-piece clamping element: a spherical (domed) washer on top and a conical seat ring below it, machined so their curved faces match each other exactly. The bolt or stud passes through the centre of both pieces. When the assembly is tightened, the spherical washer can rock slightly against the conical seat, letting the whole pair "self-align" to whatever small angle exists between the bolt axis and the clamping face — while still presenting a flat, perpendicular bearing surface to the bolt head or nut.
MEW's spherical washer conical seat set is made from low carbon steel, case hardened to 35-42 HRC, and chemically blackened for corrosion resistance. The case hardening is what lets the pair take repeated clamp-and-release cycles in a tool room without galling or losing its seating geometry. It is a clamping element, not a structural fastener — it goes under the bolt head or nut, working alongside the stud, not replacing it.
Where Is It Used?
This spherical washer conical seat set is used wherever a bolt or stud clamps down on a surface that is not guaranteed to be perpendicular to its axis:
- CNC machining fixtures with cast, forged, or welded fixture bases
- Structural bolted joints in machine frames and weldments
- Heavy clamping applications in tool rooms across Chennai, Ambattur Industrial Estate, and Oragadam SIPCOT plants
- Automotive component fixturing where mounting bosses are draft-angled from casting
- Aerospace and heavy engineering assemblies where bolt axis and clamp face angularity must be compensated without shimming
Any application using standard metric bolts or studs where the mating face has even a small, unavoidable angular error is a candidate for this washer set.
Best Suited For
| Application | Recommended? | Notes |
|---|---|---|
| Cast or forged fixture base with draft angle | Yes | Primary use case — corrects angularity from the casting/forging process |
| Structural bolted joints on weldments | Yes | Weld distortion routinely puts faces out of perpendicular |
| Precision-ground, truly perpendicular clamping face | Not required | A standard flat washer is adequate when the face is verified square |
| High-vibration bolted joints needing self-locking | No | Use with a locking washer or thread-locking compound in addition — this set addresses angularity, not vibration loosening |
| Heavy clamping in automotive/aerospace fixtures | Yes | Matches MEW catalogue use case for structural and workholding applications |
The Problem It Solves
When a flat washer sits on an angled clamping surface, it does not distribute the clamp load evenly across its face — it bears mostly on one edge. As the bolt is tightened, that uneven contact forces the bolt to bend slightly instead of loading purely in tension. Engineering literature on eccentric bolt loading describes this clearly: pure tension loading gives a uniform stress across the bolt's cross-section, but bending loading concentrates tensile stress on one side of the shank and compressive stress on the opposite side — reducing the load the bolt can safely carry before yielding or fatiguing. [Source: Industrial Monitor Direct, bending stress from eccentric load analysis, accessed July 2026]
Some spherical-washer manufacturer literature reports that even small angular errors matter — figures cited include roughly a 10% reduction in effective bolt strength at around 0.5° of clamping-face misalignment, and a much steeper drop at higher angles. [VERIFY — third-party manufacturer figure, not an MEW lab result; treat as general engineering context, not a warranted MEW spec.] In a tool room, this shows up as bolts that back off clamp load faster than expected, studs that snap after repeated setups, or fixtures that hold true on the bench but shift slightly once cutting forces load the joint. A spherical washer conical seat set removes the angular error at the washer interface, so the bolt sees axial tension the way it was designed to.
Technical Specifications
- SKU: T3-SWCS-8
- Type: Clamping Elements
- Material: Low carbon steel
- Heat treatment: Case hardened to 35-42 HRC
- Surface finish: Chemically blackened
- Configuration: Matched pair — spherical (domed) washer + conical seat ring
- Function: Self-aligning under bolt head/nut; compensates surface angularity; equalizes clamp load
- Fitment: Standard metric bolt and stud sizes used in workholding and structural applications
- Applications: CNC machining fixtures, structural bolted joints, heavy clamping
- Industries: Automotive, aerospace, heavy engineering, tool rooms
As of 2026, this spherical washer conical seat set is stocked by Madras Engineering Works, Chennai, for standard metric sizing used across South India tool rooms and fixture shops.
Spherical Washer Set vs Self-Aligning Ball Element — Don't Confuse These Two
MEW also stocks a Self-Aligning Ball Element (SKU T3-SBE-6), and the two products get mixed up because both use a spherical/ball geometry to "self-align" on an angled surface. They do different jobs. The spherical washer conical seat set (T3-SWCS-8) sits under the bolt head or nut and equalizes clamp load at the fastener itself — it is a washer-level clamping element. The self-aligning ball element (T3-SBE-6) is a load-bearing support component that sits underneath the workpiece on an angled casting or forging face, supporting the part from below. One equalizes bolt load; the other supports the part. If your problem is a bolt bending or backing off under an angled clamp face, you need the washer set. If your problem is a workpiece rocking on an angled support surface before it's even clamped, you need the ball element.
FAQ
Q: What is a spherical washer with conical seat used for? A: It is used under a bolt head or nut to self-align clamp load when the mating surface is not perpendicular to the bolt axis — common on cast, forged, or welded fixture bases. It prevents the bolt from bending and keeps clamp load even. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: Why does a bolt bend or fail on an angled clamping surface? A: A standard flat washer on an angled face bears unevenly, concentrating load on one edge. This forces the bolt to carry bending stress alongside tension instead of pure axial tension, reducing the load it can safely carry before yielding or fatiguing. A spherical washer conical seat set removes this angular error at the washer interface. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: What material is MEW's spherical washer conical seat set made from? A: Low carbon steel, case hardened to 35-42 HRC, and chemically blackened for corrosion resistance. This hardness range holds up to repeated clamp-and-release cycles in a tool room setting. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: Can I just use a regular flat washer instead? A: Only if the clamping face is verified perpendicular to the bolt axis — for example, a precision-ground fixture face. On cast, forged, or weld-distorted surfaces, a flat washer will bear unevenly and put the bolt into bending. Use the spherical washer conical seat set wherever face perpendicularity is not guaranteed. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: What is the difference between the spherical washer set and the self-aligning ball element? A: The spherical washer conical seat set (T3-SWCS-8) equalizes clamp load at the bolt head or nut. The self-aligning ball element (T3-SBE-6) is a support component that bears the workpiece itself from underneath on an angled surface. They solve different problems and are not interchangeable. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: Does this fit standard metric fixture bolts? A: Yes. MEW's spherical washer conical seat set is sized for standard metric bolt and stud sizes used across workholding and structural applications in automotive, aerospace, and heavy engineering. Confirm your exact bolt/stud size with MEW before ordering. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: Where can I buy a spherical washer conical seat set in Chennai? A: Madras Engineering Works stocks the spherical washer conical seat set (SKU T3-SWCS-8) for tool rooms and fixture shops across Chennai, Tamil Nadu, and South India. ISO 9001:2015 certified supply. Contact enquiry@madrasengg.com or WhatsApp +91 95143 73702.
Q: Is this the same as a "self-aligning washer for a bolted joint"? A: Yes — spherical washer conical seat sets are a type of self-aligning washer for bolted joints, sometimes also called equalizing washers. MEW's version uses a case-hardened, chemically blackened matched pair for CNC fixture and structural clamping use. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Get the Right Spherical Washer Conical Seat Set for Your Fixture
Whether you need a single set or a bulk order, Madras Engineering Works stocks the spherical washer conical seat set (SKU T3-SWCS-8) for standard metric bolt and stud sizes used in CNC fixtures and structural clamping.
Same-day dispatch from Chennai. ISO 9001:2015 certified supply chain. TVS Authorised Dealer.
Not sure whether you need the spherical washer set or the self-aligning ball element (T3-SBE-6)? WhatsApp a photo of your fixture face and MEW will confirm the right component.
