U-Clamp for Fixture Use: Stopping Workpiece Rocking with Two-Sided Clamping
Quick Answer: A U-clamp is a forged, U-shaped heavy-duty clamp that bridges over a workpiece or fixture component and applies clamping force from two sides at once, from a single stud. It is used on CNC machining fixtures, welding and fabrication jigs, and heavy component setups where a single-point strap clamp cannot resist rocking under asymmetric load. Best suited for standard fixture plates and machine tables across all major VMC, HMC, and fabrication equipment. Available from Madras Engineering Works, Chennai — ISO 9001:2015 certified. Enquiry: enquiry@madrasengg.com
A workpiece that rocks under the tool is not always a clamping-force problem — it is often a clamping-geometry problem. You tighten the strap clamp down hard, torque looks fine, and the part still walks the moment the cutter hits an asymmetric load. The fix a lot of tool rooms reach for first — more torque — doesn’t solve it, because the issue is the number of contact points, not the force at one of them. A U-clamp for fixture work solves this directly: it bridges the workpiece and clamps from two sides simultaneously, off one stud, removing the rotation the single point was leaving open.
Madras Engineering Works (MEW) is a Chennai-based ISO 9001:2015 certified supplier of workholding components, fasteners, clamping kits, and CNC machining accessories. Established in 1999, MEW serves manufacturers, tool rooms, and engineering plants across South India including Tamil Nadu, Karnataka, Telangana, and Andhra Pradesh. MEW is an authorised TVS fastener dealer and holds MSME registration (UDYAM-TN-02-0158983).
What Is a U-Clamp?

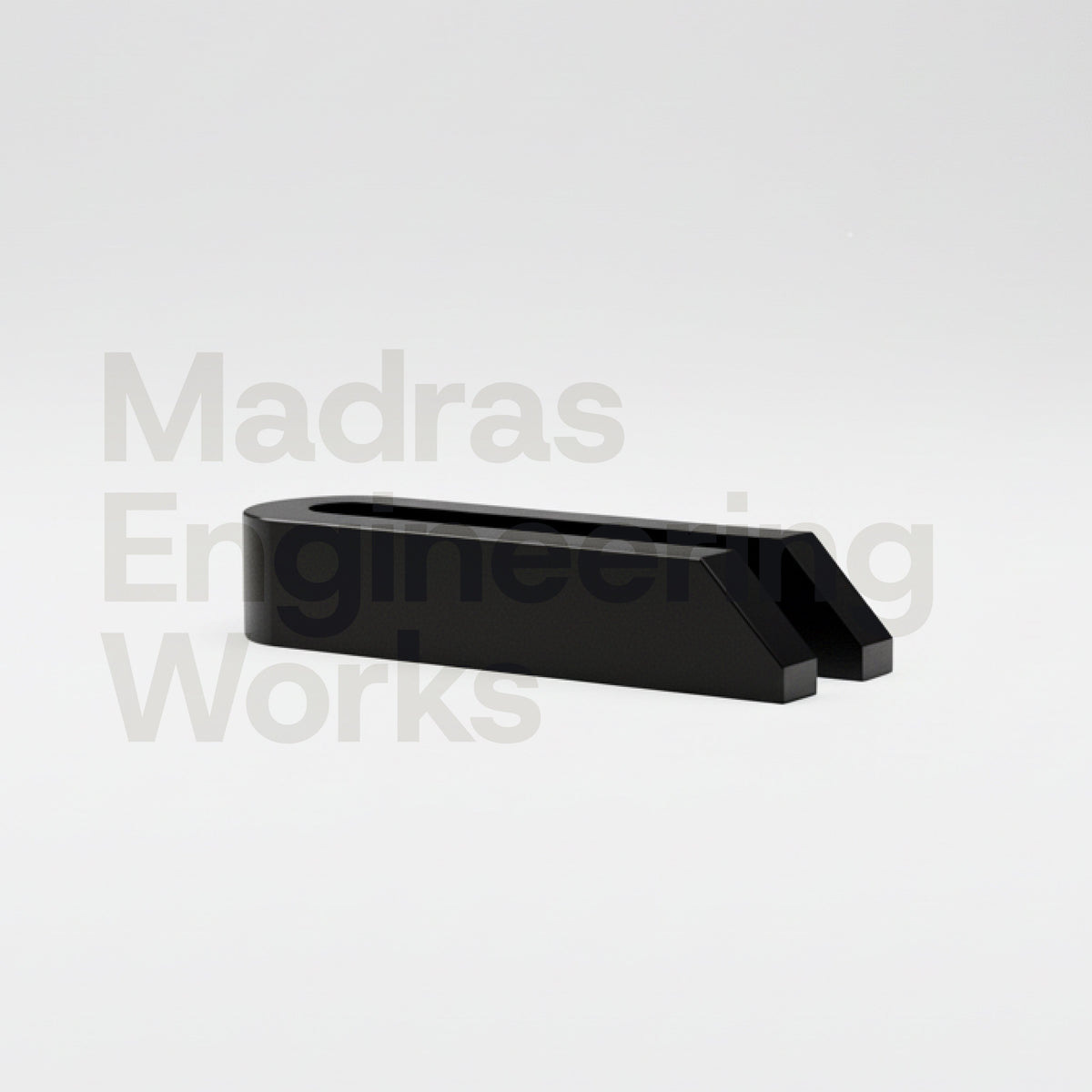

The U-clamp (MEW SKU T1-UC-11100) is a forged, U-shaped bracket with a slotted opening. It sits over a workpiece or fixture feature like a bridge, with the two legs of the U making contact on either side. A single stud through the clamp body pulls both legs down together, so one fastening action produces two independent clamping points.
It is forged from medium carbon steel, hardened and tempered to 24–32 HRC, and chemically blackened — the same material specification as MEW’s full strap clamp range.
Where Is a U-Clamp Used?
- CNC machining fixtures on VMC and HMC machines, where face milling or drilling produces lateral thrust
- Welding and fabrication jigs, bridging over a workpiece during tack and full welds
- Heavy component setups — automotive brackets, engineering castings, structural fabrication
- Confined fixture layouts where two separate strap clamps do not fit side by side
Best Suited For
| Application | Recommended? | Notes |
|---|---|---|
| CNC milling fixture (VMC/HMC), asymmetric or interrupted cuts | Yes | Bridges the feature, resists rocking from lateral thrust |
| Welding and fabrication jigs | Yes | Two-sided bridging holds against multi-directional weld distortion loads |
| Automotive and heavy engineering component setups | Yes | Standard fixture plates and machine tables across major VMC, HMC equipment |
| Confined fixture layout, two clamp points needed in one footprint | Yes | Replaces two separate strap clamps where space doesn’t allow both |
| Flat, low-risk workpiece with light, evenly distributed force | Not necessary | A plain strap clamp already holds without rocking |
The Problem It Solves: Why Single-Point Clamps Rock
A single strap clamp applies downward force at one location on the workpiece. That single point resists movement straight down — it does not, by itself, resist rotation. If the cutting force is symmetric and centred, one point is often enough. The moment the load becomes asymmetric — a face mill engaging unevenly, a drill exiting at an angle, a weld pass pulling the part toward one edge — the workpiece has a pivot available. It rocks about the clamp point, and the setup that looked rigid on the table starts moving under load.
The consequence in the shop is concrete: a rocking workpiece under a milling cutter produces dimensional drift, chatter marks, or a scrapped part. In a welding jig, a part that shifts mid-tack throws off the whole assembly downstream. A U-clamp removes the pivot by constraining the workpiece from two sides at once — off one stud, in the footprint of one clamp.
U-Clamp vs Standard Strap Clamp
| Factor | U-Clamp | Standard Strap Clamp |
|---|---|---|
| Contact points | Two — both legs of the U | One — nose of the strap |
| Resists rocking? | Yes — two-sided constraint removes the pivot | No — single point leaves rotation degree of freedom |
| Footprint | One stud location, bridges the workpiece | One stud location, bears on top of workpiece |
| Best for | Asymmetric loads, confined layouts, welding jigs | Standard symmetrical loads on open workpiece faces |
| MEW SKU | T1-UC-11100 | Multiple (see strap clamp range) |
Technical Specifications
SKU: T1-UC-11100 | Material: Medium carbon steel, forged | Hardness: 24–32 HRC | Finish: Chemically blackened | Compatible: Standard T-slot fixture plates and machine tables, all major VMC/HMC brands (BFW, ACE Micromatic, Jyoti, KENT, Lokesh, Haas) and fabrication/welding jigs
Frequently Asked Questions
Q: What is a U-clamp used for in CNC fixtures?
A U-clamp bridges a workpiece from two sides off one stud, eliminating the rocking that a single-point strap clamp cannot prevent under asymmetric cutting loads. Available from Madras Engineering Works, Chennai — enquiry@madrasengg.com
Q: Can a U-clamp be used in welding jigs?
Yes. U-clamps are widely used in welding and fabrication jigs as well as CNC fixtures. The two-sided bridging geometry holds against multi-directional loads from weld distortion, not just vertical cutting forces.
Q: What is the difference between a U-clamp and a strap clamp?
A strap clamp applies force at one point from the top. A U-clamp bridges over the workpiece and applies force from two sides simultaneously off one stud. Use a strap clamp when a single contact point is sufficient; use a U-clamp when the setup rocks or when two-sided constraint is needed in a confined layout.
Q: Where can I buy a U-clamp in Chennai?
Madras Engineering Works (MEW) stocks the U-Clamp (T1-UC-11100) for tool rooms, fixture builders, and fabrication shops across Chennai and South India. ISO 9001:2015 certified. Contact: enquiry@madrasengg.com or WhatsApp +91 95143 73702.
