Downhold Milling Clamp — What It Is, How It Works & When You Need It
Walk into most Indian VMC shops and you will find strap clamps and step blocks for everything. That works for 80% of jobs. But the other 20% — thin plates, shallow workpieces, components that need full-face machining in one setup — those jobs need something different. Madras Engineering Works stocks the full range of workholding clamp types for Indian VMC shops, including downhold and side-clamping solutions for exactly these situations.
What Is a Downhold Milling Clamp?
A downhold milling clamp is a workholding device that applies clamping force from the side of a workpiece rather than the top. The clamp body engages the workpiece at its edge or a machined step, and the clamping action pushes the workpiece down against the machine table and laterally against a locating stop.
The result: the entire top face of the workpiece is free. No clamp body, no step block, no stud projects above the part. The spindle can reach every point on the top surface without fouling a clamping component.
This is fundamentally different from a strap clamp, which projects above the workpiece top surface and limits spindle access in the area around each clamping point.
How a Downhold Clamp Works
The clamping mechanism converts the torque applied to the clamping screw into two force components:
- Lateral inward force — pushing the workpiece against a stop or against the fixture body
- Downward force — pushing the workpiece against the machine table surface
The ratio between these two components is determined by the clamp geometry. A toe clamp, for example, has an angled toe that pushes predominantly downward with a smaller inward component. A slot clamp (CES-SC-10 from Madras Engineering Works) drops into the machine table T-slot and pushes laterally against the workpiece side with a slight downward component.
Three Downhold Clamping Situations
1. Full-Face Top Machining Required in One Setup
If the drawing requires the complete top face machined flat, milled, drilled, and tapped in a single operation without repositioning, a strap clamp makes this impossible. A downhold clamp leaves the full face clear. This is the single most common reason for specifying downhold clamping on Indian VMC work.
2. Low-Profile Workpiece — Spindle Clearance is Limited
When a workpiece is thin or low, a standard strap clamp assembly (step block + clamp + stud + nut) projects significantly above the part. On a 10mm thick aluminium plate, the clamp stack may be 30mm tall — three times the workpiece height. The spindle nose or tool holder fouls this stack during normal tool moves. A slot clamp or toe clamp solves this: the clamp body is at table level or workpiece-edge level, never projecting above the part.
3. Thin or Delicate Part — Top-Down Force Causes Deflection
Strap clamps apply significant downward point loads. On a thin aluminium plate or sheet metal blank, this force bends the workpiece before the first cut. The cut follows the bent geometry; when the clamp releases, the part springs back and the machined profile is no longer flat. Downhold clamping applies lateral force distributed across the full side face height — eliminating this bending deflection entirely.
Downhold Clamp Types Available at Madras Engineering Works

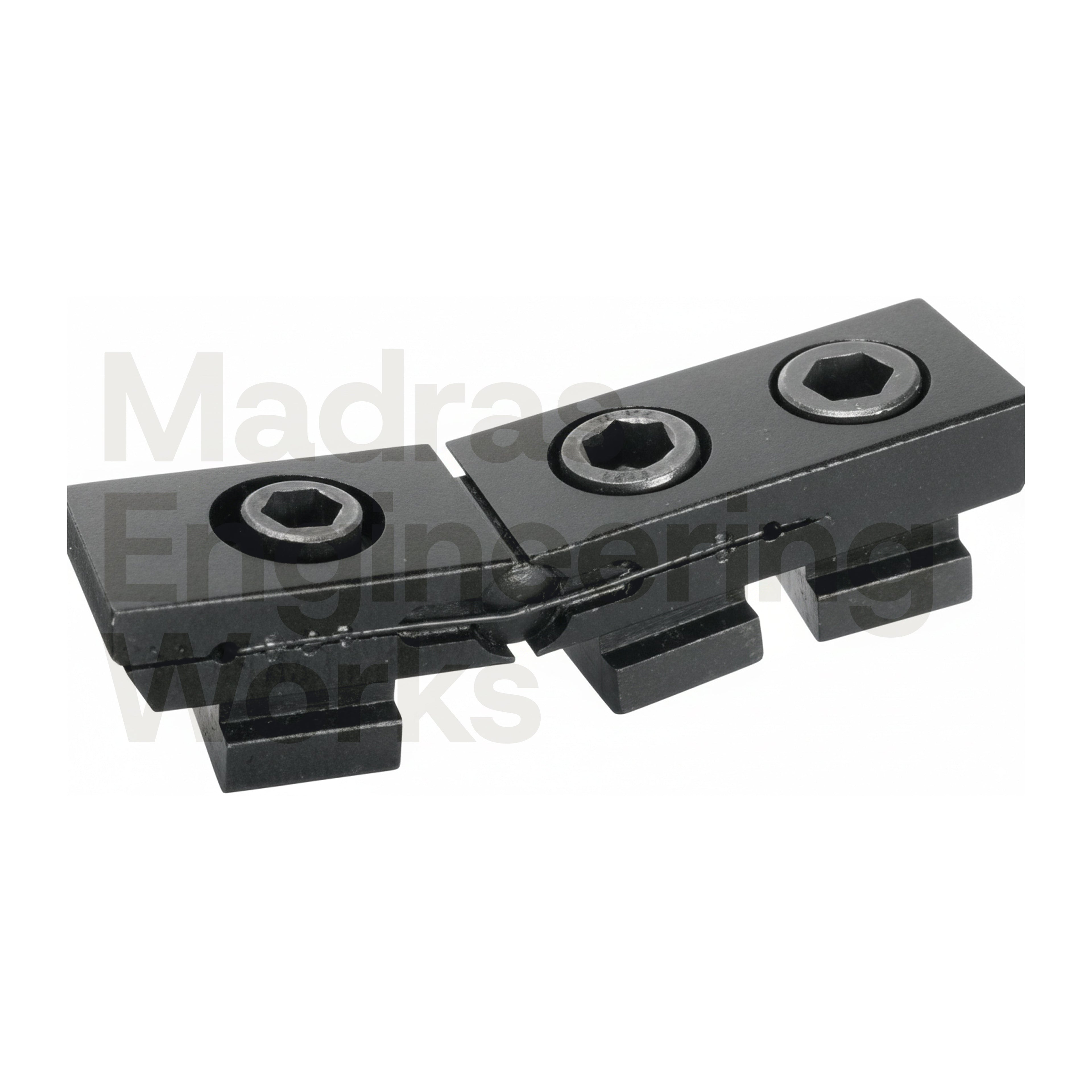

| Clamp Type | SKU | Best For | T-slot |
|---|---|---|---|
| Slot Clamp | CES-SC-10 | Thin plates, fast setup, 3mm+ workpiece thickness | 12, 14, 16mm |
| Lever Clamp | CES-LC-1/10 | Production batch, one-handle quick release | 12, 14, 16mm |
| Pinch Clamp | PL-1A-12MM | Full top-face access required, thin-walled parts | 12mm stud |
| Thick Plate Clamp | CES-TPC-1/8 | Large die blocks, thick steel plate, press tool dies | 12, 14, 16mm |
All downhold clamps from Madras Engineering Works are ISO 9001:2015 certified and stocked in Chennai for same-day dispatch.
Machine Compatibility
| Machine | T-slot Width | Stud Thread | Downhold Clamp Fit |
|---|---|---|---|
| BFW BMV 40/45/50 | 14mm | M12 | CES-SC-10, CES-TPC-1/8 |
| ACE MCV 450/500 | 14mm | M12 | CES-SC-10, CES-TPC-1/8 |
| Jyoti VMC 430/550 | 14mm | M12 | CES-SC-10, CES-TPC-1/8 |
| KENT / Lokesh VMC | 14mm | M12 | CES-SC-10, CES-TPC-1/8 |
| Haas VF-1/2/3 | 16mm | M16 | CES-SC-10 (16mm), CES-TPC-1/8 |
| FANUC ROBODRILL | 12mm | M10 | PL-1A-12MM, CES-SC-10 |
For exact T-slot dimensions for your machine, see the T-slot size guide. For a full overview of all clamp types available from Madras Engineering Works, see the types of CNC clamps guide.
When NOT to Use a Downhold Clamp
- Heavy roughing operations with interrupted cuts on hard steel — downhold clamping generates less total holding force than a full strap clamp stack. Use strap clamps for maximum holding force on heavy cuts.
- When the workpiece has no accessible side edge for the clamp to engage — the workpiece must present a grippable edge or step.
- Round or cylindrical workpieces without a flat datum — V-blocks and 3-jaw solutions are better.
Ordering & Technical Support
Madras Engineering Works is an ISO 9001:2015 certified workholding supplier based in Chennai, supplying CNC clamps, T-bolts, step blocks, and complete clamping kits to VMC shops across South India. TVS authorised dealer. To find the right downhold clamp for your setup, use our Smart-Spec calculator or WhatsApp +91 95143 73702.
Frequently Asked Questions
What is a downhold milling clamp?
A downhold milling clamp applies clamping force from the side of the workpiece, pushing it simultaneously down against the table and inward against a stop or fixture wall. Unlike a strap clamp which applies force from above, a downhold clamp contacts the workpiece at its side or edge — leaving the entire top face clear for machining. Madras Engineering Works stocks slot clamps, lever clamps, pinch clamps, and thick plate clamps for downhold clamping applications.
When should I use a downhold clamp instead of a strap clamp?
Use a downhold clamp when the top face of the workpiece must be fully machined in one setup without repositioning the clamps, when the workpiece is too thin or shallow for a strap clamp stack to clear the spindle, or when top-down strap clamp force would deflect or distort a thin-walled workpiece. For maximum holding force on heavy cuts, strap clamps remain the better choice.
What VMC machines are compatible with downhold milling clamps?
Downhold clamps from Madras Engineering Works fit standard 12mm, 14mm, and 16mm T-slot tables. Compatible with BFW BMV, ACE MCV, Jyoti VMC, Lokesh, KENT, Haas VF series, and FANUC ROBODRILL machines. The T-slot width determines the clamp size — see the T-slot size guide or WhatsApp +91 95143 73702 for a compatibility check.
How is a downhold clamp different from a toe clamp?
A toe clamp is a specific type of downhold clamp with a toe-shaped projection that grips the workpiece edge. The term ‘downhold’ describes the clamping principle (force directed down and inward from the side), while ‘toe clamp’ refers to the specific body style. All toe clamps are downhold clamps; the category also includes slot clamps, lever clamps, and pinch clamps.
Where can I buy downhold milling clamps in Chennai?
Madras Engineering Works stocks a full range of downhold and side clamping components in Chennai. ISO 9001:2015 certified, same-day dispatch available. WhatsApp +91 95143 73702 or email enquiry@madrasengg.com. All components are compatible with standard BFW, ACE, Jyoti, and Haas VMC machine tables.
