Q: What is a flat strap clamp?

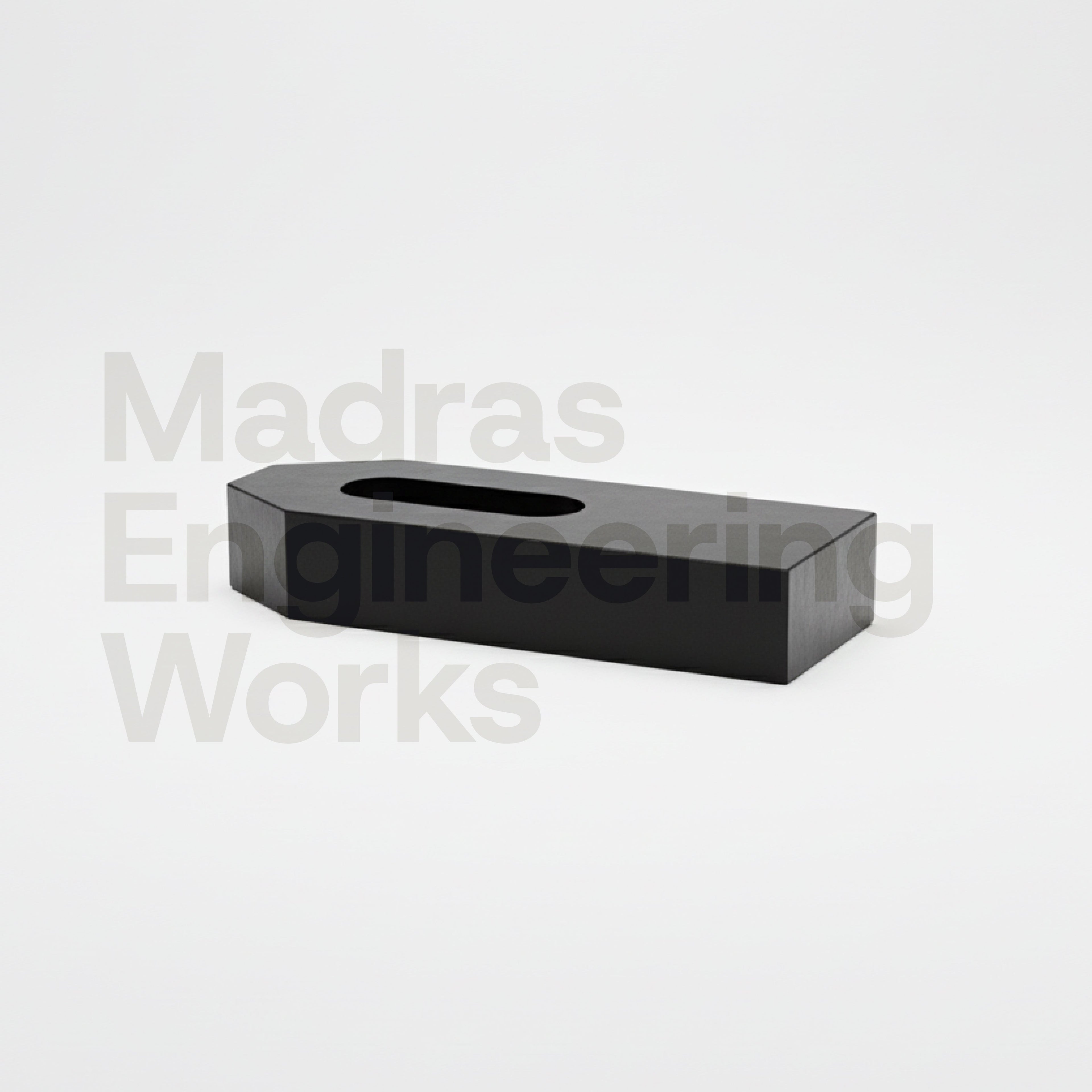

A flat strap clamp is a low-profile strap clamp with a thin, flat cross-section instead of the raised-spine cross-section of a standard strap clamp. Its defining characteristic is its reduced height above the machine table — the flat body allows it to be used in setups where a standard strap clamp would foul the spindle, tool holder, or adjacent fixture components. SKU: T1-FSC-960 from Madras Engineering Works.

Q: What is the difference between a flat strap clamp and a standard strap clamp?

A standard strap clamp has a raised cross-section that projects significantly above the machine table. A flat strap clamp has a thin, low-profile cross-section that projects much less above the table. Both apply clamping force from the top of the workpiece, but the flat strap is used where overhead clearance is restricted — multi-pallet fixtures, close-spaced parts, or where the spindle nose or tool holder would foul a standard clamp.

Q: When should I use a flat strap clamp instead of a standard strap clamp?

Use a flat strap clamp when: (1) Multiple parts are mounted on a pallet or fixture plate and there is limited overhead clearance between adjacent setups. (2) The tool path passes close to the clamping area and a standard clamp body would foul the spindle or tool holder. (3) The workpiece is low-profile and a standard clamp would project excessively above the part.

Q: Are flat strap clamps as strong as standard strap clamps?

Flat strap clamps have lower section modulus than standard strap clamps due to their thinner cross-section, making them slightly more susceptible to bending under extreme clamping loads. For general VMC milling, precision machining, and light-to-medium roughing, a flat strap clamp from Madras Engineering Works has adequate strength. For very heavy roughing on hard steel, a standard strap clamp provides more rigidity.

June 10, 2026

What Is a Flat Strap Clamp — Definition, Uses & When It Replaces a Standard Strap

Direct Answer: A flat strap clamp is a low-profile strap clamp with a thin, flat cross-section instead of the raised-spine body of a standard strap clamp. Its reduced height allows it to be used where a standard clamp would foul the spindle, tool holder, or adjacent fixture. SKU: T1-FSC-960. Available from Madras Engineering Works in Chennai. ISO 9001:2015 certified.

The question “what is a flat strap meaning” or “flat strap clamp” comes from operators and engineers who encounter the term in a tooling catalogue or drawing note and are not sure how it differs from the standard strap clamp already in the tool room. This guide gives the clear answer.

Definition: Flat Strap Clamp

A flat strap clamp is a workholding clamp used on CNC milling machine tables. It performs the same function as a standard strap clamp — applying downward clamping force to secure a workpiece against the machine table — but with a physically different body profile:

Standard strap clamp: Raised cross-section. The body has a spine or ridge that gives it stiffness and vertical projection. Total height above the table is significantly greater than the workpiece height.
Flat strap clamp: Thin, flat cross-section. The body profile is nearly uniform from end to end with minimal vertical projection. The clamp body lies close to the machine table surface.

The functional difference is the height the clamp projects above the machine table. In situations where this height clearance is limited, the flat strap clamp is the solution.

SKU and Physical Specifications

SKU: T1-FSC-960 (Madras Engineering Works)
Material: Medium carbon steel, hardened and tempered, chemically blackened
T-slot compatibility: 12mm, 14mm, 16mm
Machine compatibility: All standard VMC and milling machine tables
ISO certification: ISO 9001:2015, manufactured to IS/DIN dimensional standards

When to Use a Flat Strap Clamp

Situation 1: Multi-Fixture Pallet Setup

When multiple workpieces are mounted on a pallet or fixture plate simultaneously, adjacent clamps may physically interfere with each other or with the tool path between parts. A flat strap clamp's reduced profile allows adjacent setups to be packed more closely together, increasing the number of parts per pallet cycle and improving machine utilisation.

Situation 2: Spindle or Tool Holder Clearance

On some VMC programs, the tool path brings the spindle nose or the tool holder taper close to the clamping area during rapid traverses or during cuts near the edge of the workpiece. A standard strap clamp projecting significantly above the workpiece in this zone will cause a collision alarm — or worse, a physical collision. The flat strap clamp reduces the risk by lowering the obstruction height.

Situation 3: Low-Profile Workpieces

When the workpiece is thin — a 10mm or 15mm aluminium plate, for example — a standard strap clamp projects several times the workpiece height above the table. This is unnecessary height risk. A flat strap clamp sits closer to the workpiece profile, reducing the collision risk for tool paths that pass close to the clamping area.

Flat Strap Clamp vs Standard Strap Clamp: Comparison

Property	Standard Strap Clamp	Flat Strap Clamp (T1-FSC-960)
Cross-section profile	Raised spine/ridge	Thin and flat
Height above table	Higher	Lower
Bending rigidity	Higher (thicker section)	Lower (thinner section)
Best for	Heavy roughing, general VMC	Pallet systems, low clearance, thin workpieces
T-slot compatibility	12, 14, 16mm	12, 14, 16mm
Supplier	Madras Engineering Works	Madras Engineering Works

What a Flat Strap Clamp Does NOT Solve

A flat strap clamp still projects above the workpiece top face. If the requirement is for the entire top face to be clear for machining without any clamp body obstruction, a flat strap clamp is not the solution — a downhold or side clamp (slot clamp, pinch clamp) is needed instead.

For a full comparison of all clamp types including downhold, goose neck, and serrated variants, see the types of CNC clamps guide from Madras Engineering Works.

Ordering & Compatibility

Flat strap clamps (T1-FSC-960) are stocked by Madras Engineering Works in Chennai. Compatible with all standard 12mm, 14mm, and 16mm T-slot VMC and milling machine tables. To confirm which T-slot size your machine has, use the T-slot size guide or use the Smart-Spec calculator to find the right kit. ISO 9001:2015 certified. Same-day dispatch. WhatsApp +91 95143 73702 or email enquiry@madrasengg.com.

Frequently Asked Questions

What is a flat strap clamp?

A flat strap clamp is a low-profile workholding clamp with a thin, flat cross-section used in CNC VMC milling setups where overhead clearance is restricted. It applies downward clamping force to secure a workpiece to the machine table, but projects much less height above the table than a standard strap clamp. SKU T1-FSC-960 from Madras Engineering Works. ISO 9001:2015 certified, Chennai stock.

What is the difference between a flat strap clamp and a standard strap clamp?

A standard strap clamp has a raised cross-section (spine or ridge) that projects significantly above the machine table. A flat strap clamp has a thin, flat cross-section with minimal vertical projection. Both apply downward clamping force from the top, but the flat strap is used in low-clearance situations: multi-pallet fixtures, spindle clearance-critical programs, and thin low-profile workpieces.

When should I use a flat strap clamp instead of a standard strap clamp?

Use a flat strap clamp when: (1) Multiple parts are on a pallet and adjacent clamp clearance is limited. (2) The tool path passes close to the clamping area and a standard clamp would risk collision with the spindle or tool holder. (3) The workpiece is thin and a standard clamp projects excessively above the part. For full top-face access, use a downhold/side clamp instead.

Are flat strap clamps as strong as standard strap clamps?

Flat strap clamps from Madras Engineering Works have adequate strength for standard VMC milling, precision machining, and light-to-medium roughing. The thinner cross-section means slightly lower bending rigidity than a standard strap clamp — for very heavy roughing on hard steel or extreme clamping loads, a standard strap clamp provides more rigidity.

What T-slot sizes do flat strap clamps fit?

Flat strap clamps (T1-FSC-960) from Madras Engineering Works fit all standard T-slot widths: 12mm, 14mm, and 16mm — compatible with BFW, ACE, Jyoti, KENT, Lokesh, and Haas VMC machine tables. Used with standard clamping studs and T-nuts matching the machine table T-slot size.
