Workholding Clamps for CNC Machining — Complete Guide for South India Manufacturers
South India's manufacturing base — Chennai, Coimbatore, Hyderabad, Bengaluru, Pune — runs largely on VMC machining centres from BFW, ACE, Jyoti, KENT, and Lokesh, plus imported Haas and FANUC ROBODRILL machines. Madras Engineering Works supplies workholding clamps, clamping kits, T-slot hardware, and support elements to tool rooms and production shops across this region from stock in Chennai.
The Complete Workholding Clamp Selection Guide
| Situation | Correct Clamp | SKU |
|---|---|---|
| General flat workpiece, standard VMC setup | Plain Strap Clamp | T1-PC-1170 |
| Aluminium, stainless, or slip-prone material | Serrated Strap Clamp | T1-SSC-960 |
| Low overhead clearance, pallet systems | Flat Strap Clamp | T1-FSC-960 |
| Raised boss or obstruction blocks straight clamp | Goose Neck Clamp | T1-GNC-11100 |
| Two contact points needed from one stud | U-Clamp | T1-UC-11100 |
| Variable edge distances between jobs | Slotted Strap Clamp | T1-SC-1175 |
| Full top face must remain clear | Slot Clamp (Downhold) | CES-SC-10 |
| Production batch, one-handle release | Lever Clamp | CES-LC-1/10 |
| Thin plate, full top face machining | Pinch Clamp | PL-1A-12MM |
| Heavy die block or thick plate | Thick Plate Clamp | CES-TPC-1/8 |
| Press tool die clamping, heavy milling | Press Tool/Milling Clamp (PTMC) | T1-PTMC-8 |
| Clamping point in recess or under lip | Hook Clamp | T1-HK-1642 |
| Injection moulding machine platen | Mould Clamp | T1-MCH-12115-S |
Strap Clamp Setup: The Five-Layer Stack
A standard strap clamp workholding setup uses five components working together:
- T-slot nut — anchors inside the machine table T-slot
- Clamping stud — threaded bar connecting T-nut to clamp assembly above
- Step block — supports the non-workpiece end of the strap clamp at the correct height
- Strap clamp — the lever that applies force to the workpiece surface
- Washer and nut — transmit tightening torque into clamping force

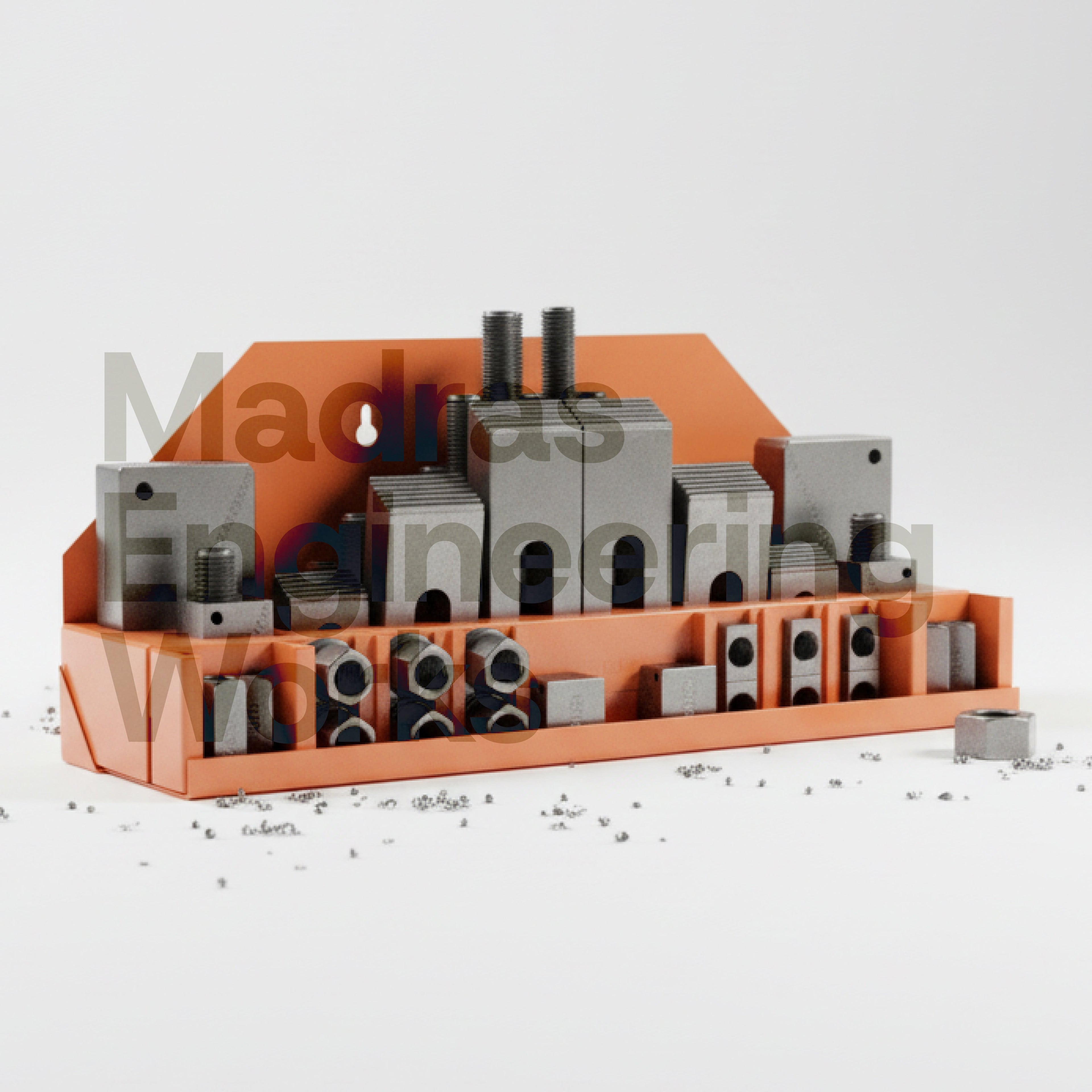

For all five components to work correctly, they must all match the same T-slot size. The easiest way is to order a pre-matched kit. Madras Engineering Works supplies the Universal Clamping Kit (T4-TCK-108) for all standard T-slot sizes — browse the complete clamping kits range.
VMC Compatibility: T-Slot Sizes by Machine
| Machine | T-Slot Width | Stud Thread | Kit |
|---|---|---|---|
| BFW BMV series | 14mm | M12 | T4-TCK-1412 |
| ACE MCV 450/500 | 14mm | M12 | T4-TCK-1412 |
| Jyoti VMC 430/550 | 14mm | M12 | T4-TCK-1412 |
| KENT/Lokesh VMC | 14mm | M12 | T4-TCK-1412 |
| FANUC ROBODRILL | 12mm | M10 | T4-TCK-1210 |
| Haas VF-1/2/3/4/5 | 16mm | M16 | T4-TCK-1616 |
For exact T-slot dimensions and stud thread specifications by machine model, see the T-slot size guide. For a detailed breakdown of all clamp types, see the types of CNC clamps guide.
Why Quality Grade Matters for Workholding Clamps
Indian market workholding components vary enormously in quality. Low-grade strap clamps bend under VMC clamping torque. Low-grade T-nuts strip at the bore or seize in the slot. Low-grade step blocks have inaccurate steps — the height differences between steps are not consistent, so the clamp tilts even when set to the ‘correct’ step.
Madras Engineering Works supplies workholding clamps manufactured to IS/DIN standards, hardened to the correct HRC grade (T-nuts: 24–32 HRC, washers: 35–42 HRC, clamps and step blocks: appropriate grade for load), and dimensionally inspected under ISO 9001:2015 quality management. This is the difference between a setup that holds through a 2-hour roughing operation and one that allows 0.2mm of workpiece drift per hour.
Workholding Clamp Support Elements
Clamps alone are not enough for complex setups. These support elements complete the workholding system:
- Screw Jacks — support the underside of workpieces with overhangs or irregular datum surfaces. Browse screw jacks and workpiece support.
- Supporting Height Plates — fine-tune step block height in 2mm and 4mm increments
- Self-Aligning Ball Elements — provide stable third-point contact on rough casting datum surfaces
- Support Bolts — adjustable datum point support for semi-finished blanks
Ordering in South India
Madras Engineering Works is based in Chennai and serves tool rooms and VMC shops across South India — Chennai, Coimbatore, Bengaluru, Hyderabad, and surrounding areas. ISO 9001:2015 certified. TVS authorised dealer. Same-day dispatch from Chennai stock. WhatsApp +91 95143 73702 or email enquiry@madrasengg.com. Use the Smart-Spec calculator to find the right kit for your machine.
Frequently Asked Questions
What are workholding clamps?
Workholding clamps are mechanical devices that secure a workpiece to a CNC machine table during machining operations. They apply controlled clamping force to prevent workpiece movement under cutting forces. Types include strap clamps, step clamps, downhold clamps, toe clamps, goose neck clamps, hook clamps, and more. Madras Engineering Works supplies the complete range from stock in Chennai, ISO 9001:2015 certified.
Which workholding clamp is best for VMC milling in India?
The strap clamp is the most versatile and widely used workholding clamp for VMC milling in India. Used with step blocks and T-slot hardware, it handles the majority of standard workholding applications. For specific situations — thin plates requiring full-face machining, castings with raised bosses, production batch setups — specialised clamp types from Madras Engineering Works are needed.
What is the difference between a strap clamp and a step clamp?
A strap clamp is the flat steel body that applies force to the workpiece. A step block (also called step clamp block) is the support element on the opposite end of the strap clamp. Together, they form a strap clamp assembly. The step block sets the clamp height; the strap clamp transmits the clamping force. The complete assembly also includes a T-slot nut, clamping stud, washer, and nut.
Where can I buy CNC workholding clamps in Chennai?
Madras Engineering Works stocks a complete range of CNC workholding clamps in Chennai, including strap clamps, step blocks, T-nuts, T-bolts, studs, screw jacks, and clamping kits. ISO 9001:2015 certified. TVS authorised dealer. Same-day dispatch available. WhatsApp +91 95143 73702 or email enquiry@madrasengg.com.
What is a complete workholding kit for a VMC?
A complete VMC workholding kit (Universal Clamping Kit T4-TCK-108) from Madras Engineering Works includes T-bolts, T-slot nuts, clamping studs, step blocks, strap clamps, thick washers, and high nuts — all matched to your T-slot width (12mm, 14mm, or 16mm). Compatible with BFW, ACE, Jyoti, KENT, Lokesh, and Haas VMC machines. ISO 9001:2015 certified, in stock Chennai.
