T-Nuts in CNC Machining: Design, Seating & T-Slot Failure Explained

T-nuts are structural, load-bearing components in CNC and VMC machines—not accessories. When a T-nut is incorrectly sized, poorly seated, or worn, the entire clamping load path collapses. The result is bent studs, cracked T-slot lips, sudden clamp release, tool breakage, and permanent machine table damage. This reference explains T-nut mechanics, DIN 508 standards, real Indian shop-floor failure modes, and proven inspection practices to protect accuracy, safety, and machine life.

1. What a T-Nut Actually Does (Beyond “Holding a Bolt”)

A T-nut is a precision load-transfer component that must:

• Convert tightening torque into stable preload tension in the stud
• Transmit this preload into the T-slot structure
• Distribute compressive load across the T-slot inner surface
• Remain seated and aligned under vibration and cutting forces

The T-nut sits between the stud (tension) and the machine table (compression). If this interface fails, no amount of tightening can make the setup safe.

Compression vs Tension Behaviour

• Compression: T-nut shoulder presses against the sloped inner surface of the T-slot
• Tension: Stud pulls upward on T-nut threads; first 2–3 threads carry most of the load

If seating is incomplete or the T-nut is undersized, compression reduces and bending begins—multiplying stress and triggering fatigue failures.

2. T-Nut Design Types Used in CNC Machines

Standard DIN 508 T-Nuts

• Rectangular shoulder for full load transfer
• Thread sizes M4–M48
• Typical Indian VMC usage: M12 DIN 508 for 18 mm T-slots
• Material: Class 8 (800 MPa) or Class 10 (1000 MPa)

Reduced-Height T-Nuts

• Used where vertical clearance is limited
• 30–40% lower load capacity
• Not recommended for heavy milling

Extended-Base / Heavy-Duty T-Nuts

• Larger shoulder area
• Used for heavy castings and production fixtures

Serrated vs Smooth Bottom

• Smooth: Standard setups with frequent removal
• Serrated: High-vibration or long-term fixture setups

3. Correct T-Nut Sizing vs T-Slot Geometry

Undersized T-Nut

• Rocks inside the slot
• Edge loading instead of full contact
• Rapid preload loss and stud bending

Oversized T-Nut

• Jams inside slot
• Damages slot edges during insertion
• Permanent table damage over time

4. Why Correct T-Nut Seating Is Critical

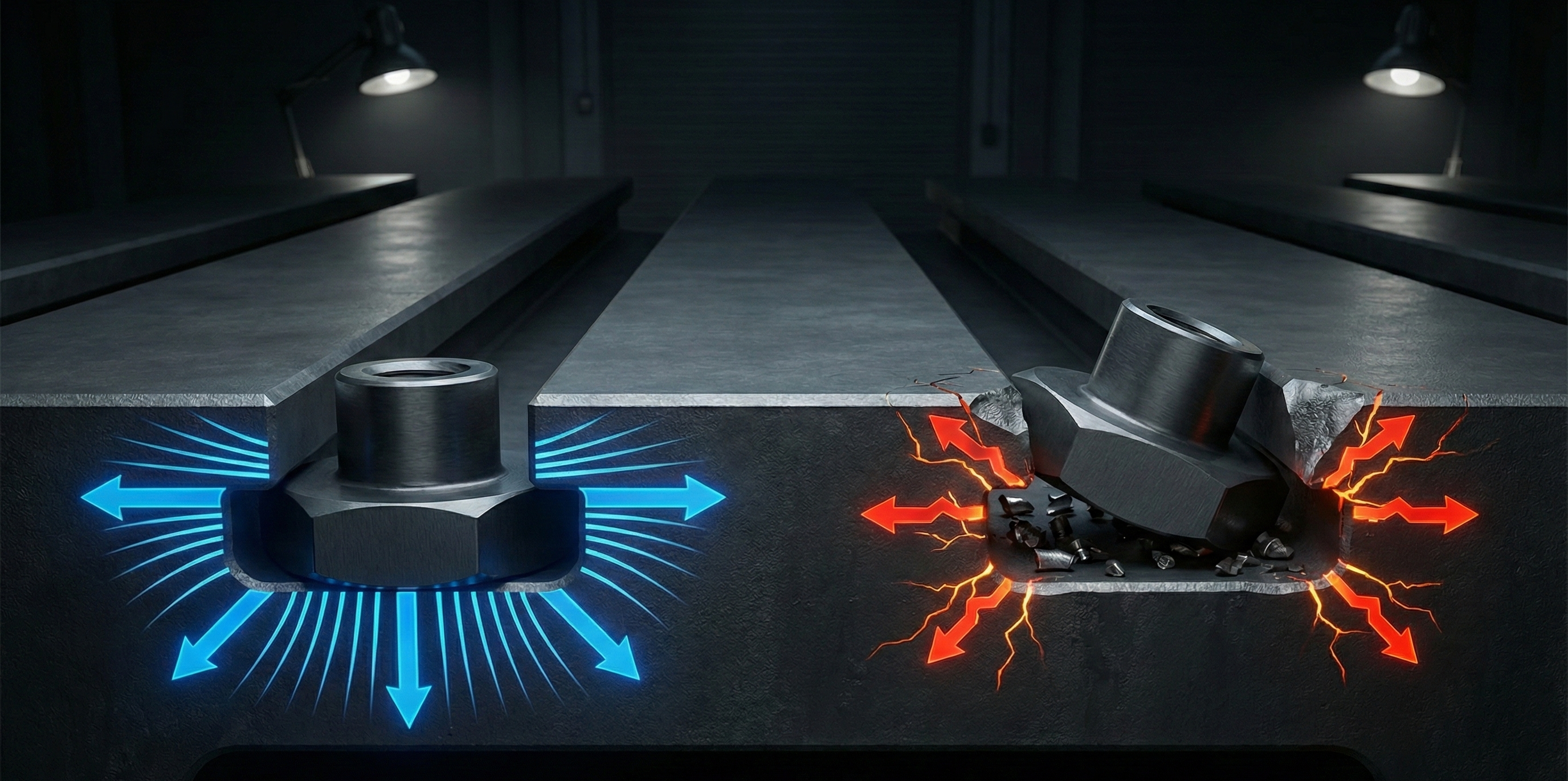

Full-Face Seating (Correct)

• Uniform pressure distribution
• Stable preload over hundreds of cycles
• T-slot loaded in compression (safe)

Point / Edge Contact (Incorrect)

• Stress concentration increases 2–3×
• T-nut tilts under load
• Stud enters tension + bending

Even a 0.2 mm gap under a T-nut is enough to push stud stress into the fatigue failure zone.

5. How Chips, Rust & Sludge Destroy Seating

• Chips: Lift T-nut 0.2–0.5 mm → unstable preload
• Rust: Common in humid Indian shops → uneven contact
• Coolant sludge: Compresses over time → preload drops silently

What feels “tight” initially becomes loose mid-batch.

6. Common Indian Shop Mistakes

• Reusing worn or mushroomed T-nuts
• Mixing M10 and M12 T-nuts across machines
• Using mild-steel instead of hardened DIN 508
• Grinding T-nuts to make them fit
• Leaving T-nuts permanently inside slots
• Over-tightening to compensate for bad seating

7. Failure Modes Caused by Wrong T-Nuts

• T-nut tilting → stud bending
• Thread stripping → false tightness
• Stud pull-out → sudden clamp release
• T-slot lip cracking → irreversible table damage

8. Best Practices from Professional Tool Rooms

• Machine-specific T-nut kits
• Quarterly visual and tactile inspection
• Replace every 2–3 years (earlier if worn)
• Clean slots weekly; remove T-nuts after shifts

9. Simple Operator Rules (No Calculations)

• If it rocks → reject it
• If it doesn’t slide freely → wrong size
• If it looks rounded → replace
• Tight ≠ safe if seating is bad

10. Cost, Safety & Accuracy Impact

Annual T-nut maintenance costs a few thousand rupees. Ignoring it costs lakhs.

Conclusion

T-nuts are small components with massive responsibility. Correct sizing, full seating, and routine replacement prevent nearly all clamp-related failures. In Indian CNC job shops, disciplined T-nut management is one of the highest-ROI actions for protecting machines, operators, and part quality.

Practical note:
If you are seeing chatter, unexplained tool breakage, or T-slot damage despite “tight” clamping, the root cause is often worn or incorrectly seated T-nuts. A quick inspection and correct replacement usually fixes the issue permanently.
