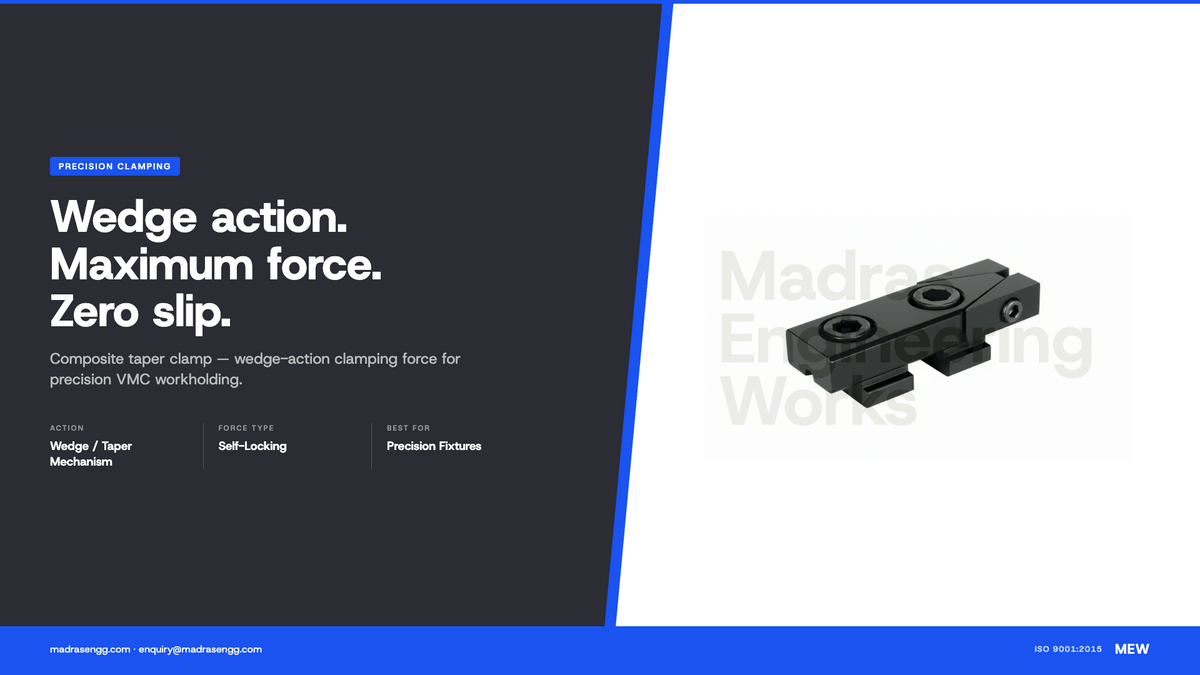

When a standard strap clamp isn’t holding a thick plate under heavy milling and tightening it further isn’t solving the problem, the issue is the clamping mechanism, not the torque. A composite taper clamp uses a wedge geometry in its body to amplify lateral clamping force — the taper converts axial screw movement into higher holding force than a direct strap clamp can produce at the same torque. This guide explains how the mechanism works, when to use it, and the full specs for the MEW CES-CTC-1/8.
How the Taper Mechanism Works
A standard strap clamp applies force at an angle from above the workpiece. The force has a downward component and a horizontal component. For top-face clamping of most workpieces, this is fine. For side-holding thick plates under heavy lateral cutting forces, the angled top-clamp geometry means the force opposing the workpiece’s tendency to slide sideways is only a fraction of the total clamping force applied.
The composite taper clamp works differently. The body has a tapered (wedge) profile. As the clamping screw is tightened, the wedge geometry converts the screw’s axial movement into a higher lateral force than the screw torque alone would produce — this is mechanical advantage built into the shape of the clamp. The result: significantly greater holding force against the side of the workpiece per unit of applied torque, directly opposing the direction of cutting force in thick-plate side-milling operations.
This is why “tighten it harder” doesn’t work with a strap clamp in this application. The mechanism isn’t designed to efficiently generate lateral holding force. The composite taper clamp is.
When to Use a Composite Taper Clamp
The composite taper clamp is the right tool for:
- Side-holding thick plates during milling, shaping, planing, plano-milling, or jig boring operations where maximum lateral rigidity is needed.
- Heavy interrupted cuts on large steel or cast iron workpieces where standard strap clamping allows movement or chatter.
- Fixture design where high lateral holding force must be built into the fixture permanently — the composite taper clamp is widely used as a clamping element in jig and fixture construction.
Two situations where a different clamp is more appropriate:
- Top face must be accessible: Use a downhold milling clamp instead. It applies downward and inward force simultaneously and keeps the top face completely clear for the cutter.
- Light cuts, general machining: A plain strap clamp is faster to set up and sufficient for lighter applications. See the complete workholding guide for the full clamp selection framework.
Not sure which side clamp is right for your specific setup? WhatsApp a photo of the part and job to +91 95143 73702 and we’ll recommend the right clamp before you order.
MEW Composite Taper Clamp — Full Specs (CES-CTC-1/8)
| Spec | Value |
|---|---|
| SKU | CES-CTC-1/8 |
| Body & jaw seating material | Medium carbon steel |
| Jaw material | Heat-treated steel, blackened |
| Supplied with | Screws and T-nuts of respective sizes (complete — no separate hardware order needed) |
| Applications | Milling, shaping, planing, plano-milling, drilling, jig boring; clamping element in fixture design |
| Machine compatibility | Heavy-duty VMC and HMC; standard fixture plates and machine tables |
One difference worth knowing before you order: the composite taper clamp is supplied complete — screws and T-nuts included. This is different from the Downhold Milling Clamp (CES-DMC-1), which is supplied without a T-bolt and requires a separately ordered matching set for your T-slot size. With the composite taper clamp, what arrives is what you need to fit and use it.
Composite Taper Clamp vs Downhold Clamp vs Strap Clamp
| Clamp type | Force direction | Best for | Top face clear? |
|---|---|---|---|
| Strap clamp | Angled from above | General machining, light-to-medium cuts | No |
| Composite taper clamp | High lateral force via wedge | Thick plate side-holding, heavy cuts, fixture design | Depends on geometry |
| Downhold milling clamp | Downward + inward simultaneously | Full top-face access, stops workpiece lift | Yes |
Material specifications for hardened clamping components align with Bureau of Indian Standards requirements for heat-treated medium carbon steel used in workholding applications.
Frequently Asked Questions
What is a composite taper clamp?
A composite taper clamp is a side-clamping device that uses a wedge (taper) geometry in its body to amplify lateral clamping force. As the clamping screw is tightened, the taper profile converts the applied torque into a higher lateral holding force than a direct strap clamp would produce at the same torque. It is used for side-holding thick plates in milling, shaping, jig boring, and fixture applications where maximum lateral rigidity is required.
How does a taper clamp generate more force than a strap clamp?
The wedge geometry of the taper clamp body creates mechanical advantage — the tapered profile converts axial screw movement into a multiplied lateral force against the workpiece. A standard strap clamp applies force at an angle from above, with only a fraction of the total force acting laterally. The composite taper clamp directs its amplified force specifically against the side of the workpiece, where cutting force in thick-plate side-milling operations acts.
Does the composite taper clamp come with T-nuts and screws?
Yes. The MEW CES-CTC-1/8 is supplied complete with screws and T-nuts of respective sizes. No separate hardware order is required. This distinguishes it from the Downhold Milling Clamp (CES-DMC-1), which is supplied without a T-bolt and requires a separately ordered matching set for your T-slot size.
What is the difference between a composite taper clamp and a downhold milling clamp?
Both are side clamps, but for different purposes. The downhold milling clamp applies simultaneous downward and inward force, keeping the top face clear for the cutter — designed to stop workpiece lift and enable full-face machining. The composite taper clamp applies high lateral clamping force via a wedge mechanism for thick-plate side-holding where maximum lateral rigidity is the priority.
What machines is the composite taper clamp compatible with?
The CES-CTC-1/8 is compatible with heavy-duty VMC and HMC machine tables and standard fixture plates. It is used in milling, shaping, planing, plano-milling, drilling, and jig boring setups, and as a clamping element in jig and fixture design across automotive, aerospace, and heavy engineering applications.
Written by Husain, Founder of Madras Engineering Works — an ISO 9001:2015 certified industrial supplier in Chennai specialising in workholding, clamping and CNC accessories. Need help selecting the right side clamp for your milling or fixture application? WhatsApp +91 95143 73702 or email enquiry@madrasengg.com.
