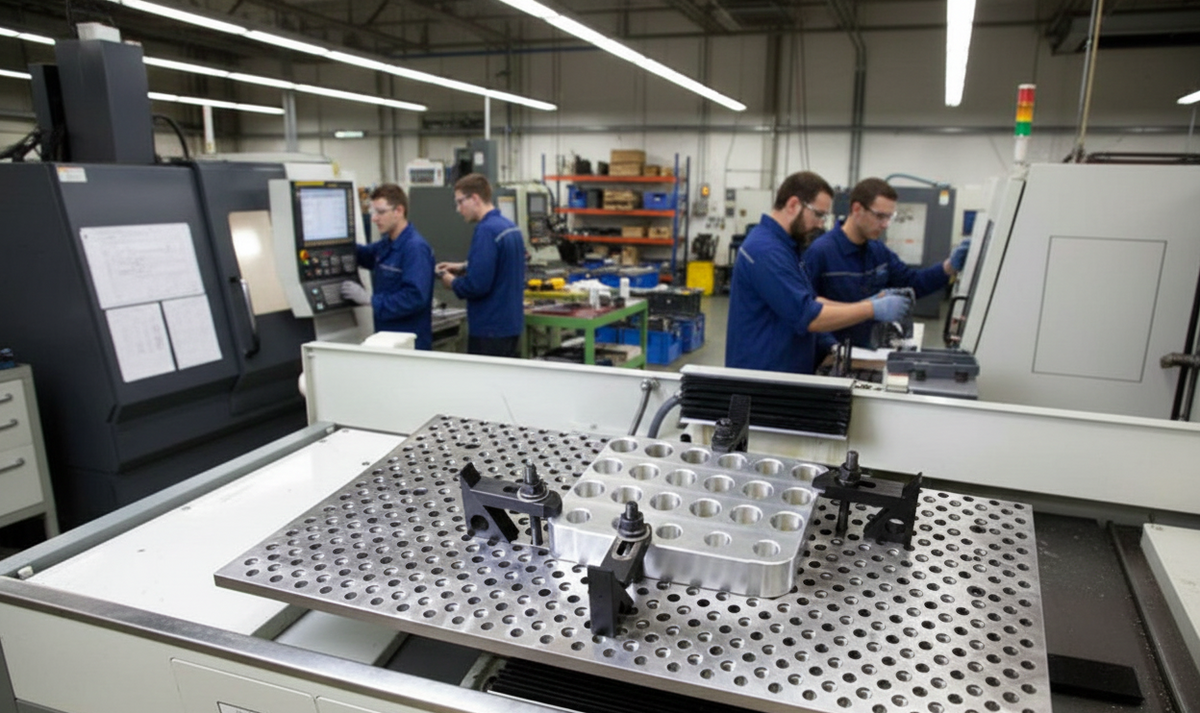

Why Strap Clamps (Flat & Step) Remain the Most Reliable & Cost-Effective Workholding Method in Indian CNC/VMC Shops

In India’s MSME machining ecosystem, strap clamps are not “old-school”—they are optimal.
A ₹6,000 clamping kit handles hundreds of job types, from castings to precision blocks, without requiring special tooling or staff training.

As you read this guide, note that strap clamps directly relate to other core workholding topics:
👉 Clamping Elements Guide
👉 Prevent Workpiece Slippage

What Strap Clamps Are — Types & Uses

Strap clamps are rigid steel bars with adjustable slots that convert stud tension into downward clamping force.

Types commonly used in Indian CNC/VMC shops:

• Flat Strap Clamps — simplest design; perfect for low-height jobs.
  👉 Flat Strap Clamp

• Step Strap Clamps — built-in steps for quick height changes.
  👉 Step Clamp

• Heavy-Duty Strap Clamps — thick bars, long slots, often rated 1,600+ kg.

Used on:

• VMC tables

• Milling machines

• Drilling machines

• Fixture plates

• Angle plates

• Rotary tables

For a deeper understanding of how clamp choice affects accuracy, see:
👉 Workholding Accuracy & Tool Life Guide

How Strap Clamps Work — Lever Action Explained

A strap clamp behaves like a first-class lever:

1. The T-nut anchors inside the machine table’s T-slot.
   👉 T-Nut

2. Tightening the nut creates tensile load on the stud.
   👉  Studs / Clamping Stud

3. The clamp pivots slightly at the heel point (step block).
   👉 Step Block

4. This converts ~90% of the tension into downward clamping force.

To learn more about selecting the right T-slot and stud sizes, refer to:
👉 T-Slot, Stud & Clamp Size Selection Guide

For technical verification of DIN 650 T-slot standards:
👉  DIN 650 T-slot Specification

Why Strap Clamps Beat Every Other Method in India

1. Cost Advantage

A 58-piece kit (studs, T-nuts, clamps, step blocks):
👉  58-Piece Clamping Kit

Cost: ₹5,500–₹8,500
Comparable systems:

• Magnetic chuck: ₹10,500–₹250,000

• Zero-point modular: ₹24,000–₹150,000

• Hydraulic clamps: ₹30,000–₹200,000+

2. Extreme Flexibility

Same kit → 100+ job variations
Perfect for batch sizes of 1–100 parts.

For example setups and troubleshooting, see:
👉 Common Clamping Mistakes & Fixes

3. No Skill Barrier

Any operator can set it up with:

• One spanner

• Step block

• Correct stud length

This reduces training cost dramatically.

4. Availability Across All of South India

Shops in Chennai, Coimbatore, and Hosur can get replacement clamps in hours — not days.

Compare with modular or hydraulic systems:
👉 [INSERT EXTERNAL LINK: Reference – Hydraulic vs Mechanical Workholding]

Real Machine Mapping (India)

Machines & T-slot sizes:

• Jyoti VMC 640/850 → 18 mm T-slot

• BFW Virat → 14–18 mm

• Ace Micromatic → 16–18 mm

• LMW → 18–20 mm

• Haas VF Series → Imperial equivalent (14 mm usable)

For T-slot mapping charts:
👉 T-Slot Size Chart

Industry Use Cases (South India)

Automotive (Chennai / Sriperumbudur)

Engine mounts, gearbox casings, brake components
Strap clamps + M16 studs = optimal rigidity

Pump / Textile (Coimbatore)

Cast iron pump housings
Magnetic/vacuum fails → strap clamps succeed.

Mould & Die (Hosur / Chennai)

Die plates, cavities, insert holders
Heavy-duty strap clamps prevent movement during roughing.

These are supported by practical examples earlier in:
👉 Accuracy & Tool Life

Technical Specs — Materials, Force Capacity

Clamp Material

EN8/C45 steel
28–35 HRC hardness
Blackodised or phosphate-coated

Stud Grades

8.8 (standard)
10.9 (heavy-duty)
12.9 (special use)

Torque & force values:
👉 Bolt Torque Chart / ISO 898-1

Common Operator Mistakes (India-Specific)

1. Heel too low → clamp lifts the part

2. Wrong T-slot / stud mismatch → T-nut pull-out

3. Over-tightening using impact gun

4. Using worn clamps

5. Stud too long → spindle crash risk

6. Clamping delicate parts without soft pads

For a full troubleshooting guide, link here:
👉 Prevent Workpiece Slippage

Checklist: How to Select the Right Strap Clamp

• Measure T-slot width

• Match stud thread

• Select stud length

• Choose step blocks

• Add soft pads if needed

• Confirm torque

• Perform dry run

Detailed step-by-step selection is covered here:
👉  T-Slot & Stud Selection Guide

To Conclude,

Strap clamps continue to dominate CNC/VMC workholding in India because they deliver unmatched adaptability, affordability, and long-term reliability. For job shops in Chennai, Coimbatore, and Hosur, strap clamps are not a compromise—they are the smartest engineering choice.
